Name: ADSS Fiber Optic Cable G652D Single Jacket Non Metallic 6 12 24 48 96 Core 100 200m Span
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: ADSS 96 هسته 144
Price: 168.32 USD
Availability: InStock

امکانات گالری توضیحات محصول درخواست نقل قول

امکانات

مشخصات

نوع فیبر: G652D Single Mode یا به عنوان درخواست شما

برنامه: هوایی/مجرای/سربار

تعداد هادی ها: 48 96 هسته

ساختار: لوله شل رشته ای

دمای عملیاتی: -40 ~ +60 c

عضو قدرت اصلی: FRP

طول: 80 متر 100 متر 200 متر 300 متر

برند فیبر: yofc/fiberhome/fujikura/corning

اطلاعات اولیه

محل منبع: چین

نام تجاری: Jiqian/Customize/ OEM

گواهی: ISO9001 ROHS CE-EMC FCC SDOC

شماره مدل: ADSS 96 هسته 144

پرداخت

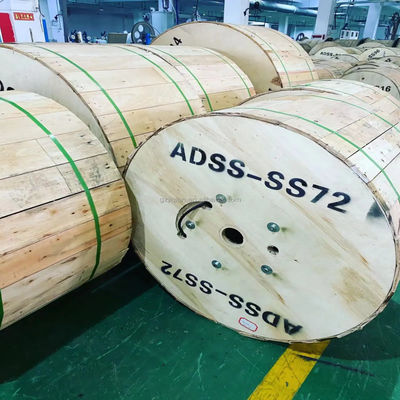

جزئیات بسته بندی: طبل چوبی/سفارشی

زمان تحویل: 2-4 روز

شرایط پرداخت: Western Union ، T/T ، L/C

قابلیت ارائه: 100 کیلومتر در ماه

گالری

ADSS Fiber Optic Cable G652D Single Jacket Non Metallic 6 12 24 48 96 Core 100 200m Span

توضیحات محصول

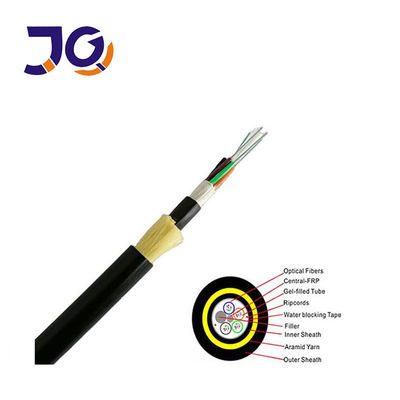

Non-Metallic Single Jacket ADSS Fiber Optic Cable
6 / 12 / 24 / 48 / 96 Core | G652D | 100–200m Span

Key Features

All-Dielectric Design
Non-metallic structure ensures excellent electrical insulation and resistance to electromagnetic interference
Self-Supporting Structure
No messenger or support wire required, reducing installation time and cost
Single PE Jacket
Durable outer sheath provides UV, moisture, and weather resistance
Multiple Fiber Counts
Available in 6 12 24 48 96 cores to meet different network capacities
Optimized for Medium Span
Suitable for 100m to 200m aerial span installations

Applications

Aerial fiber optic communication networks
Power transmission and distribution lines
FTTH and access networks
Urban and rural overhead installations

Technical Data:

Cable fiber count				/	2~30	32~60	62~72
Structure				/	1+5	1+5	1+6
Fiber style				/	G.652D
Central strength member			material	mm	FRP
			Diameter (average)		1.5	1.5	2.1
Loose Tube			Material	mm	PBT
			Diameter (average)		1.8	2.1	2.1
			Thickness(average)		0.32	0.35	0.35
			Max fiber/loose tube		6	12	12
			Tubes color		Full color identification
			Fiber excess length	%	0.7~0.8
Water resistance			Material	/	Cable jelly
Inner sehath			material	mm	MDPE
			Inner sheath		0.9mm
Non-metallic strengthen components			Material	/	Aramid Yarn
Outer sheath			material	mm	MDPE
			Outer sheath		1.8mm
Cable diameter(average)				mm	10.9	11.5	12.1
Cable weight (Approximate)				kg/km	95	110	120
Cable Sectional area				mm2	93.31	103.87	114.99
Attenuation coefficient(Max)	1310nm			dB/km	0.35
	1550nm				0.21
Rated Tensile Strength(RTS)				kn	6
Max allowed tension( MAT)				kn	2.5
Annual average operating tension (EDS)				kn	3.2
Young's modulus				kn/mm2	7.8
Coefficient of thermal expansion				10-6/℃	9
Crush resistance		Long term		N/100mm	1100
		Short term			2200
Permission Bent Radius		static		mm	15 of OD
		dynamic			20 of OD

FAQ

1. Are you a manufacturer or trading company?
We are a direct manufacturer with our own factory located in Guangzhou, China. Factory visits are always welcome.

2. What is the minimum order quantity (MOQ)?
The standard MOQ is 1 km. Trial orders are supported, especially for new projects.

3. Do you offer samples?
Yes. Free samples are available. Customers only need to cover the shipping cost.

4. What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.

5. What is the delivery time?
Production time is usually 3–7 working days, depending on order quantity and specifications.

6. Can you provide OEM or customized products?
Yes. OEM and ODM services are available, including customized structures, specifications, and logos.

7. Which fiber brands are available?
We can supply fibers from Corning, YOFC, FiberHome, and other major brands upon request.
