Name: 2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GJXH-2B6
Price: 1,249.01 USD
Availability: InStock

امکانات گالری توضیحات محصول درخواست نقل قول

امکانات

مشخصات

محل منبع: گوانگژو، چین

تولید کننده: بله

تایپ کنید: کابل را رها کنید GJXH

نوع فیبر: G657A1/A2/G652D/G657A1/G657A2

ژاکت: LSZH PVC

طول: 1 کیلومتر یا 2 کیلومتر

OEM: موجود است

عضو قدرت اصلی: عضو قدرت FRP، عضو استحکام سیم فولادی

برجسته کردن:

2 core FTTH drop cable G657A2,indoor LSZH fiber optic cable,FTTH drop cable with LSZH jacket

indoor LSZH fiber optic cable

FTTH drop cable with LSZH jacket

اطلاعات اولیه

محل منبع: چین

نام تجاری: JQ/OEM/Customize

گواهی: ISO 9001,ROHS CE-EMC FCC SDOC

شماره مدل: GJXH-2B6

پرداخت

جزئیات بسته بندی: طبل چوبی

زمان تحویل: ۳ تا ۵ روز، بستگی به مقدار سفارش داره

شرایط پرداخت: L/C ، T/T ، Western Union ، Alipay

قابلیت ارائه: 4500 در ماه

گالری

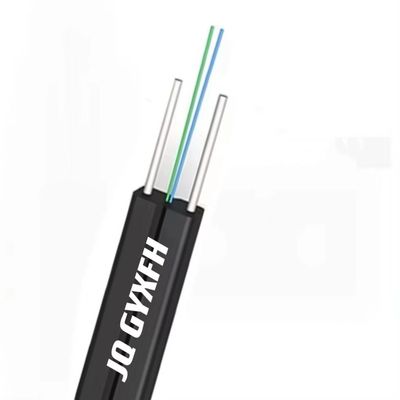

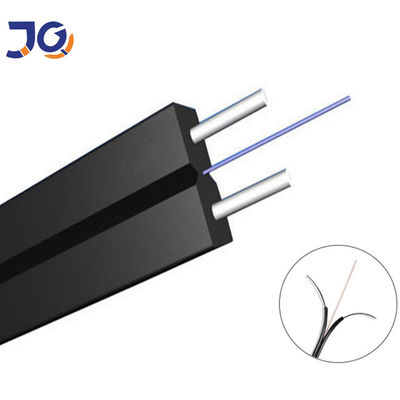

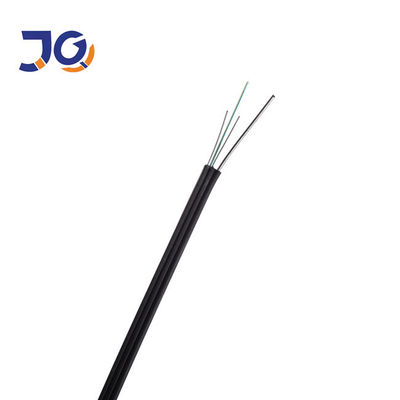

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable

توضیحات محصول

Product Description

FTTH Drop Cable is designed for Fiber to the Home applications, used to connect equipment and components in fiber optic access networks.
The optical fiber is positioned between two parallel strength members and protected by an LSZH outer sheath, suitable for indoor installation.

Key Features

Single Mode Fiber G657A1
1 / 2 / 4 Core optional
Two parallel FRP or steel wire strength members
Self-supporting flat structure
Black or white LSZH sheath
Lightweight and easy installation
Ideal for indoor FTTH wiring

Cable Structure

Fiber type: G657A1 Single Mode
Strength member: 2×FRP or 2×Steel Wire
Fiber placement: Center between parallel strength members
Outer jacket: LSZH


Fiber Optical

			Item

			Unit

			Specification

			G. 657A

			Mode field diameter

			1310nm

			mm

			8.6 ± 0.4

			Cladding diameter

			mm

			125.0 ± 0.7

			Cladding non-circularity

			%

			≤1.0

			Core concentricity error

			mm

			≤0.5

			Coating diameter

			mm

			245 ± 5

			Coating/cladding concentricity error

			mm

			≤12

			Cable cut-off wavelength

			nm

			≤ 1260

			Attenuation Coefficient

			1310nm

			dB/km

			≤0.35

			1550nm

			dB/km

			≤0.21

			Macro-bend loss (1 turn,7.5mm radius)

			1550nm

			dB/km

			≤0.5

			1625nm

			dB/km

			≤1.0

			Proof stress level

			kpsi

			≥100

Technical parameters

			Product

			Model
			Fiber

			Count

			(core)
			Cable Diameter(mm)
			Cable Weight

			(kg/km)
			Tensile

			Strength

			Long/Short

			Term(N)
			Crush
Resistance

			Long/ShortTerm(N)

			Bending

			Radius

			Static/Dynamic

			GJXH
			1
			(2.1+0.1)*(3.1+0.1)
			10
			1000/2200
			200/1000
			15/30

			GJXH
			2
			(2.1+0.1)x(3.1+0.1)
			10
			1000/2200
			200/1000
			15/30

			GJXH
			4
			(2.3+0.1)*(3.3+0.1)
			12
			1000/2200
			200/1000
			|15/30

			GJXFH
			1
			(2.1+0.1)x<(3.1+0.1)
			9
			800/1800
			200/1000
			15/30

			GJXFH
			2
			(2.1+0.1)x(3.1+0.1)
			9
			800/1800
			200/1000
			15/30

			GJXFH
			4
			(2.1+0.1)x(3.1+0.1)
			11
			800/1800
			200/1000
			15/30

			GJYXCH
			1
			(2.1+0.1)*(5.1+0.1)
			21
			1500/2500
			500/1300
			15/30

			GJYXCH
			2
			(2.1+0.1)*(5.1+0.1)
			21
			1500/2500
			500/1300
			|15/30

			GJYXCH
			4
			(2.1+0.1)x(5.1+0.1)
			21
			1500/2500
			500/1300
			15/30

			GJYXFCH
			1
			(2.1+0.1)*(5.1+0.1)
			20
			1500/2500
			500/1300
			15/30

			GJYXFCH
			2
			(2.1+0.1)x(5.1+0.1)
			20
			1500/2500
			500/1300
			15/30

			GJYXFCH
			4
			(2.1+0.1)x(5.1+0.1)
			20
			1500/2500
			500/1300
			15/30

Related Products

Package

Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable 3

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable 4

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable 5

2 Core FTTH Drop Cable GJXH Indoor LSZH Jacket G657A2 Fiber Optic Cable 6

Lead time:
Quantity(km)	Samples	1-100km	100-500km
Earliest time	1days	3-5 work days	5-7 work days

FAQ

Q: Are you a factory or trading company?
A: We are a professional fiber optic cable manufacturer.

Q: What is the MOQ?
A: MOQ for fiber optic cable is 1 km.

Q: Which fiber brands do you use?
A: YOFC, FiberHome, or equivalent international brands.

Q: Do you accept small orders?
A: Yes. Small orders are welcome. We support new projects and trial orders.

Q: What is the delivery time?
A: Normally 5–7 days after order confirmation, depending on quantity.

Q: Can you provide OEM or customized products?
A: Yes. OEM service and customized logo/structure are available.

Q: What payment terms do you accept?
A: T/T, L/C, Western Union
(30% deposit, 70% before shipment)
