خانه /محصولات/کابل قطره فیبر نوری FTTH/Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network

1 کیلومتر
MOQ
Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نوع فیبر: G657A1/G657A2/G652D
شمارش فیبر: 1/2/4 هسته
رنگ ژاکت: سیاه ، سفید ، به عنوان درخواست
قطر کابل: 2.0 * 5.0 میلی متر
عضو قدرت: سیم فولادی 0.45 میلی متر
ماده ژاکت: LSZH/PVC
سیم پیام رسان: سیم فولادی 1.0 میلی متری
برنامه: شبکه ftth fttb fttx
برجسته کردن:

Outdoor FTTH drop fiber cable G657A1,Single mode fiber optic drop cable 20x50mm,FTTH access network fiber cable with warranty

,

Single mode fiber optic drop cable 20x50mm

,

FTTH access network fiber cable with warranty
اطلاعات اولیه
محل منبع: گوانگژو، چین
نام تجاری: JQ/OEM/Customize
گواهی: ISO9001 ROHS CE-EMC FCC SDOC
شماره مدل: gjyxch
پرداخت
جزئیات بسته بندی: بسته بندی چوبی یا جعبه کارتونی
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: L/C، T/T، Western Union
قابلیت ارائه: 30 کیلومتر در روز
توضیحات محصول

Outdoor FTTH Fiber Optic Drop Cable G657A1 Self Supporting 1 2 4 Core LSZH 2.0x5.0mm Steel Wire Strength Member

Product Description

The FTTH fiber optic drop cable is designed for outdoor last-mile access networks, connecting distribution points to end users.

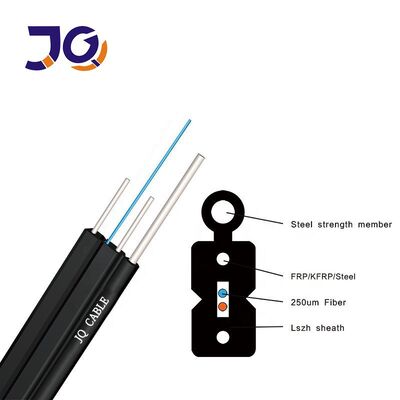

The optical fiber is placed between two parallel steel wires or FRP strength members, providing excellent tensile and crush resistance.
The cable is protected by a low smoke zero halogen (LSZH) sheath, ensuring safety, durability, and easy installation.

Features

  1. 1.0mm steel wire strength member for self-supporting aerial installation

  2. Dual FRP or steel wire ensures high crush resistance

  3. Novel flute design for easy stripping and fast splicing

  4. LSZH flame-retardant sheath safe for outdoor use

  5. Compact size 2.0x5.0mm lightweight and flexible

  6. Complies with Telcordia GR-326-CORE standard

Applications

• FTTH outdoor access network
• Aerial self-supporting drop installation
• Last-mile broadband connection



Technical parameters

Product
Model		 Fiber
Count
(core)		 CableDiameter(mm) CableWeight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)		 Crush
Resistance
Long/Short
Term(N)		 Bending
Radius
Static/
Dynamic
GJXH 1 (2.1+0.1)*(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 2 (2.1+0.1)x(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 4 (2.3+0.1)*(3.3+0.1) 12 1000/2200 200/1000 |15/30
GJXFH 1 (2.1+0.1)x<(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 2 (2.1+0.1)x(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 4 (2.1+0.1)x(3.1+0.1) 11 800/1800 200/1000 15/30
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30





Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 0

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 1

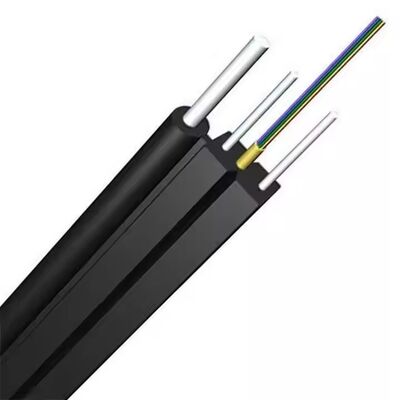

Product detail

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 2

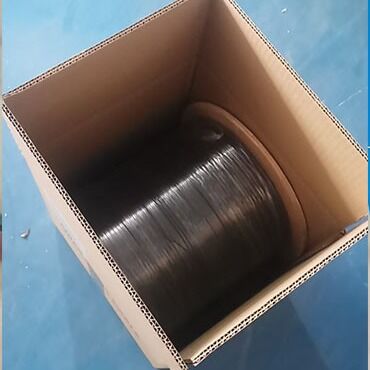

Package

Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 3

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 4

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 5



FAQ



1. Are you a trading company or a manufacturer?
We are a professional manufacturer with over 10 years of experience, specializing in fiber optic cable, FTTH drop cable and patch cord production. Our factory is located in Guangzhou, China. Factory visits are welcome.



2. How do you ensure product quality?
All fiber optic cables are 100% tested before delivery. Free samples are available for quality evaluation after price confirmation.



3. Do you accept small orders?
Yes. Small orders are accepted. We support new projects and believe long-term cooperation starts from small orders.



4. What is your delivery time?
Normally 3–7 working days, depending on order quantity. We always arrange production and shipment as quickly as possible after payment.



5. Do you provide OEM service?
Yes. OEM and logo printing services are available. Custom designs are welcome.
