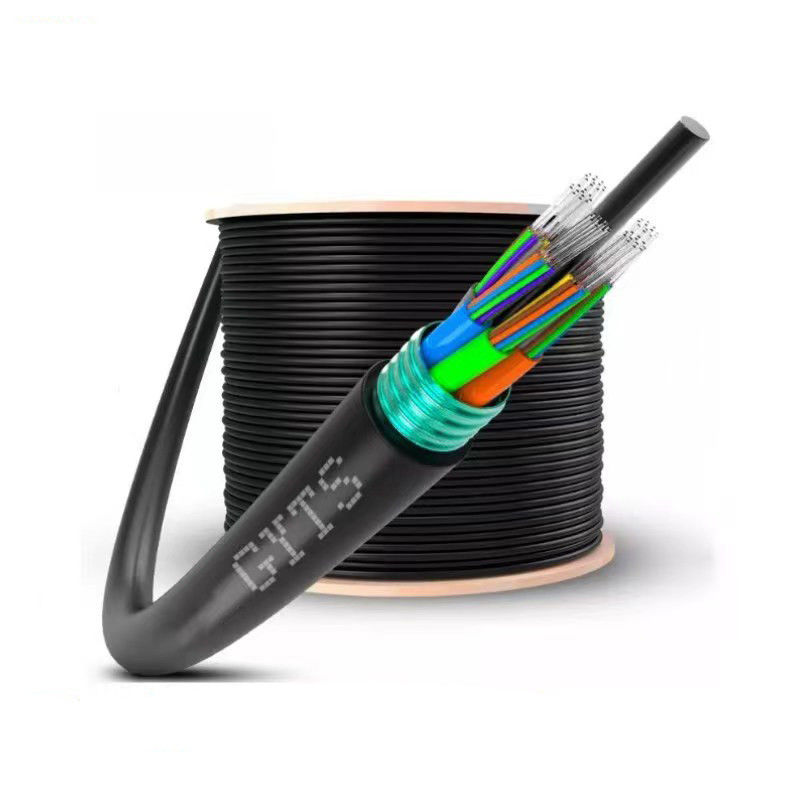

GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode
GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode
اکنون تماس بگیرید

GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode

مقدار حداقل تعداد سفارش : 1 کیلومتر جزئیات بسته بندی : طبل چوبی
زمان تحویل : 5-8 روز کاری شرایط پرداخت : L/C ، T/T ، Western Union
قابلیت ارائه : 4500 کیلومتر در ماه
محل منبع: گوانگژو، چین نام تجاری: JQ/OEM/Customize
گواهی: ISO9001 ROHS CE-EMC FCC SDOC شماره مدل: GYTS-24B1

اطلاعات تکمیلی
نوع فیبر: YOFC، Fiberhome، به عنوان درخواست رنگ: مشکی یا نارنجی یا سفارشی
ژاکت: PE ، MDPE ، HDPE عضو قدرت: سیم فلزی/نخ شیشه ای FRP
شمارش فیبر: 2-288 هسته نصب و راه اندازی: هوا و کانال
نام محصول: کابل فیبر نوری فضای باز برنامه: شبکه/ارتباطات راه دور
برجسته کردن:

24 core duct fiber optic cable,armored single mode fiber cable,outdoor stranded loose tube cable

,

armored single mode fiber cable

,

outdoor stranded loose tube cable

توضیحات محصول

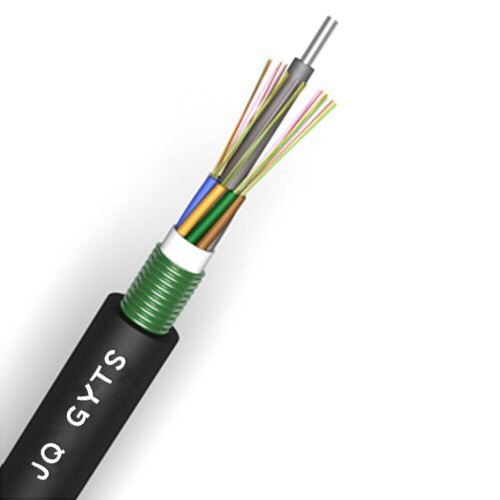

GYTS 24 core Single mode Outdoor Duct Armored Outdoor Fiber Optic Cable

Features

  • Strong mechanical & temperature performance

  • Water-resistant high-strength loose tube

  • Special grease for better fiber protection

  • Compact structure prevents tube shrinkage

  • UV-resistant PE jacket for outdoor use

  • Central strength member + waterproof gel

  • Full-core filling with APL moisture barrier



GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode 0

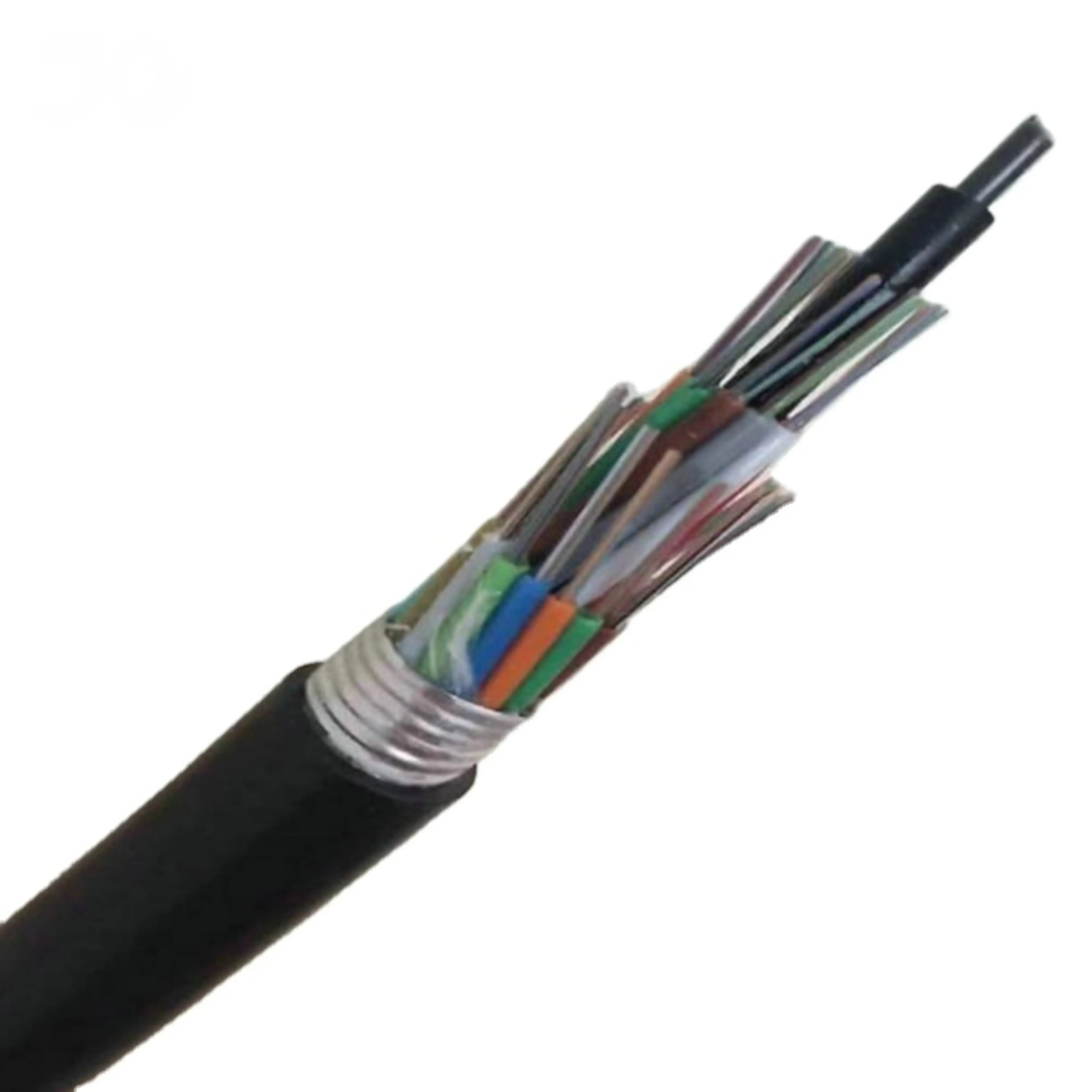

Product Show

GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode 1

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 9.8 95

10
Times
of
Diameter

















20
Times
of
Diameter

















 1500 600 1000 300
32-36 10.3 115 1500 600 1000 300
38-60 10.7 115 1500 600 1000 300
62-72 11.3 140 1500 600 1000 300
74-96 12.9 175 1500 600 1000 300
98-120 14.4 210 1500 600 1000 300
122-144 15.8 245 1500 600 1000 300
146-216 16.3 260 1500 600 1000 300
218-240 19.5 345 1500 600 1000 300
242-288 21.7 415 1500 600 1000 300





Application



Suitable for external application in duct and aerial

GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode 2





Delivery&Payment

GYTS 24 Core Duct Fiber Optic Cable Outdoor Stranded Loose Tube Armored Single Mode 3



FAQ

1. Are you a manufacturer?
Yes. We have 10+ years of experience in fiber optic cable production. Factory located in Guangzhou—welcome to visit.



2. How about quality?
All fibers are 100% tested before delivery. Free samples available after price confirmation.



3. Do you accept small orders?
Yes. Small and trial orders are supported.



4. Delivery time?
Generally 3–7 working days, depending on quantity.



5. Do you offer OEM?
Yes. We support OEM/ODM and can print your logo.
