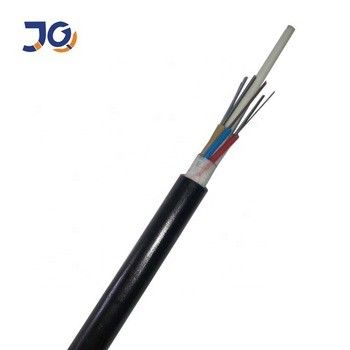

GYFTY Fiber Optic Cable 12 48 Core Single Mode Outdoor Duct Direct Burial Underground Optical Cable

10 کیلومتر
MOQ
Inquiry for price
قیمت
GYFTY Fiber Optic Cable 12 48 Core Single Mode Outdoor Duct Direct Burial Underground Optical Cable
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
برند فیبر: yofc/fiberhome/corning/fujikura
رنگ: مشکی یا نارنجی یا سفارشی
ژاکت: PE، HDPE/LSZH/AT
عضو قدرت: FRP (با PE در صورت نیاز) نخ شیشه ای
تعداد فیبر: 4-288 هسته
نصب و راه اندازی: سربار و مجرای و دفن مستقیم
طول درام: 5 کیلومتر یا سفارشی
برنامه: آنتن فضای باز، شبکه FTTH FTTB FTTX
برجسته کردن:

12 core duct fiber optic cable,48 core single mode optical cable,direct burial underground fiber cable

,

48 core single mode optical cable

,

direct burial underground fiber cable

اطلاعات اولیه
محل منبع: چین
نام تجاری: JQ/ Customize
گواهی: ISO9001, FCC, ROHS/CCC/FCC
شماره مدل: GYFTY-12/24/48 هسته
پرداخت
جزئیات بسته بندی: طبل چوبی
زمان تحویل: 8 روز
شرایط پرداخت: L/C، T/T، Western Union
قابلیت ارائه: 300 کیلومتر در روز
توضیحات محصول

GYFTY Outdoor Self Supporting Fiber Optic Cable



Product Introduction
GYFTY fiber optic cable is designed for outdoor networks in high-voltage or strong electromagnetic environments. Its loose tube structure protects fibers and ensures stable signal transmission while remaining lightweight and easy to install.



Key Features

  • Stable mechanical and temperature performance
  • Water-resistant loose tube with protective compound
  • UV-resistant PE outer sheath
  • Lightweight and easy to install

Applications

  • Power transmission communication lines
  • Outdoor aerial and duct installations
  • Telecom backbone networks
  • High-interference environments


Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Count
Diameter
(MI)
Weight
(KG/KMI)
Min.Bend Radius Mlin.Tension
(N)
Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 8.8 88

10
Times
Diameter

















20
Times
Diameter

















1500 800 1000 500
32-36 9.0 95 1500 800 1000 500
38-60 9.2 98 1500 800 1000 500
62-72 9.5 105 1500 800 1000 500
74-96 10.5 118 1500 1000 1000 500
98-120 11.8 145 2000 1500 1000 500
122-144 14.2 165 2000 1500 1000 500
146-216 16.3 225 2000 1500 1000 500
218-240 18.5 305 2000 1500 1000 500
242-288 22.7 395 2500 2000 1000 500



Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

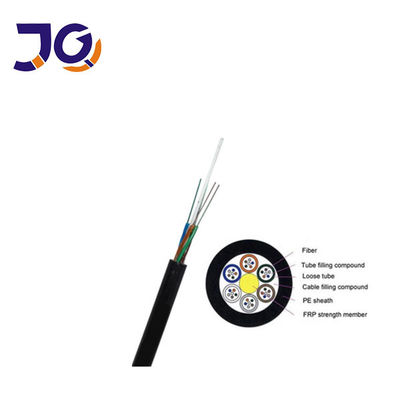

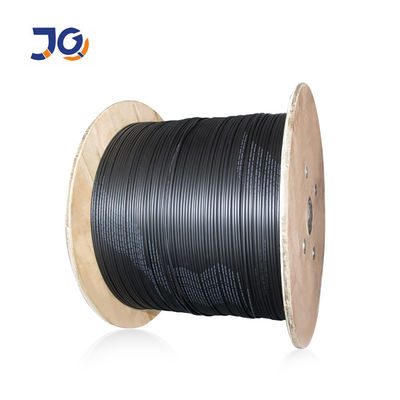

Detail product pictures

GYFTY Fiber Optic Cable 12 48 Core Single Mode Outdoor Duct Direct Burial Underground Optical Cable 0



GYFTY Fiber Optic Cable 12 48 Core Single Mode Outdoor Duct Direct Burial Underground Optical Cable 1



FAQ





1. What is GYFTY fiber optic cable used for?

It is mainly used for outdoor communication networks, especially in areas with strong electromagnetic interference.



2. Is GYFTY cable suitable for aerial installation?

Yes, its lightweight design makes it suitable for aerial and duct installations.



3. What fiber types are available for GYFTY cable?

It supports single-mode G652D and multimode fibers such as OM1, OM2, OM3, and OM4.



4. Does the cable have good weather resistance?

Yes, the PE outer sheath provides strong UV and environmental protection.



5. Is the cable easy to install?

Yes, its small diameter and lightweight structure make installation simple and efficient.
