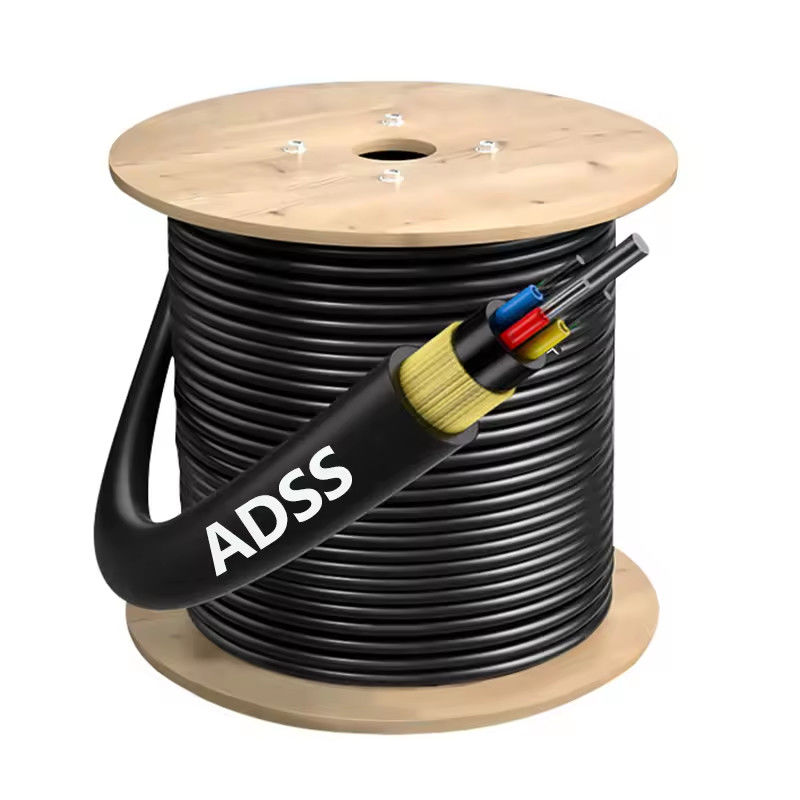

ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable
ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable
ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable
اکنون تماس بگیرید

ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable

مقدار حداقل تعداد سفارش : 10 کیلومتر جزئیات بسته بندی : طبل چوبی یا طبل آهنی
زمان تحویل : حدود 10 روز شرایط پرداخت : T/T ، Western Union ، Alipay ، MoneyGram ، L/C
قابلیت ارائه : 21500 کیلومتر در هر ماه
محل منبع: چین گوانگدونگ نام تجاری: JQ or OEM/Customize
گواهی: ISO9001 CE ROHS Rohs FCC شماره مدل: ADSS-4C/12FC/24C/48C/96C/144C

اطلاعات تکمیلی
برنامه: نصب هوایی در فضای باز شمارش فیبر: 4-144Cores
طول: 100m /200 m /300m یا سفارشی برند فیبر: yofc/fiberhome/corning
ماده ژاکت: HDPE/MDPE/PE تعداد قدرت: FRP ، Kevlar Aramid Yarn
ساختار: لوله شل رشته ای رنگ ژاکت: سیاه زرد سیاه یا سفارشی
برجسته کردن:

ADSS single mode fiber optic cable,aerial outdoor optical cable,single jacket fiber optic cable

,

aerial outdoor optical cable

,

single jacket fiber optic cable

توضیحات محصول

Factory Price: Single Mode ADSS Optical Fiber Cable with Aramid Yarn Strength

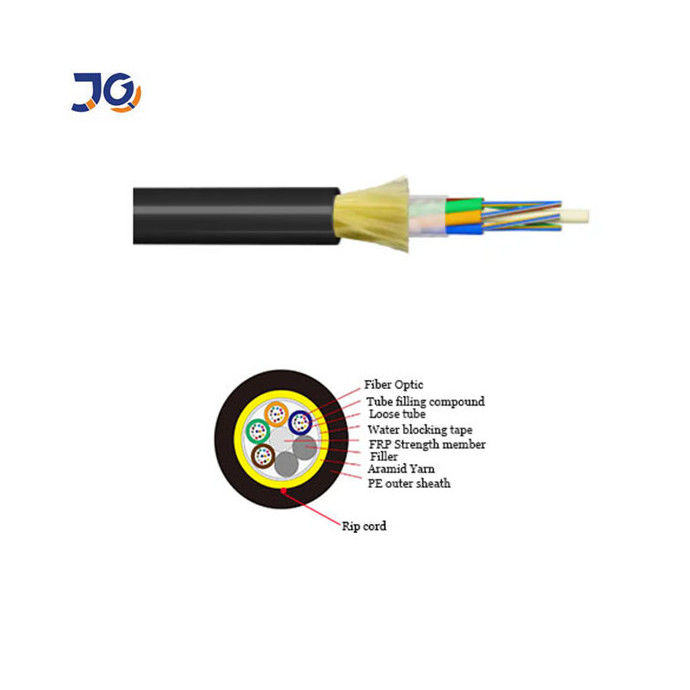

Structure & Design

  • Compact, stranded core with optical fibers in loose tubes filled with water-resistant gel.

  • Central FRP (Fiber Reinforced Plastic) strength member for stability.

  • Aramid yarn reinforcement for tensile strength.

  • Durable PE or AT outer sheath.

Key Features

  • Non-Conductive: Safe for live-line installation.

  • Easy Installation: Self-supporting, no messenger wire needed.

  • High Mechanical Strength: Resistant to external loads and harsh weather.

  • Optimized Performance: Aramid yarn improves tensile and temperature stability.

  • Customizable: Can be tailored for different spans and applications.

Applications

  • PE Sheath: Overhead power lines <110kV.

  • AT Sheath: Overhead power lines ≥110kV to prevent electrical tracking.

Standards Compliance

Manufactured to meet IEEE P 1222 and IEC 60794-1 standards.



Structure and Technical Specifications



1. ADSS single jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 9.8 80 90
6 1+5 6 1.9 2.0/2.0 1.7±0.1 9.8 80 90
8 1+5 4 1.9 2.0/2.0 1.7±0.1 9.8 80 90
12 1+5 6 1.9 2.0/2.0 1.7±0.1 9.8 80 90
24 1+5 6 2.0 2.0/2.0 1.7±0.1 9.8 85 95
48 1+5 12 2.0 2.0/2.0 1.7±0.1 10.0 88 98
72 1+6 12 2.2 2.0/2.0 1.7±0.1 10.5 98 108
96 1+8 12 2.2 2.0/3.4 1.7±0.1 12.0 122 135
144 1+12 12 2.2 3.0/7.2 1.7±0.1 15.2 176 189



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.



2. ADSS double jacket



fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
6 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
8 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
12 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
24 1+5 6 2.0 2.0/2.0 1.7±0.1 12.0 128 138
48 1+5 12 2.0 2.0/2.0 1.7±0.1 12.5 130 140
72 1+6 12 2.2 2.0/2.0 1.7±0.1 13.2 145 155
96 1+8 12 2.2 2.0/3.4 1.7±0.1 14.5 185 195
144 1+12 12 2.2 3.0/7.2 1.7±0.1 16.5 212 228



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.





Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---




Details picture shows



ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable 0



                                                 single jacket ADSS fiber cable



ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable 1



                                               double jacket ADSS fiber optic cable











ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable 2







Packing:

ADSS Single Mode Fiber Optic Cable Single Jacket Aerial Type with Aramid Yarn Strength Outdoor Optical Cable 3



FAQ

Are you a manufacturer or trading company?
We are a professional manufacturer with 10+ years of experience in fiber optic cables, drop cables, and patch cords. Our factory is in Guangzhou, and visits are welcome.



How do you ensure quality?
Every fiber is fully tested, with final inspection before shipment. Free samples are available for quality verification.



Do you accept small orders?
Yes, we support small orders for new projects.



What is your delivery time?
Standard delivery is 3–7 business days, depending on quantity.



Do you offer OEM services?
Yes, we can customize products and print your logo.



Are your raw materials certified?
Yes, all materials come from ISO9001 and RoHS certified suppliers.
