خانه محصولاتکابل فیبر نوری داخلی6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service
6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service
6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service
6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service
اکنون تماس بگیرید

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service

مقدار حداقل تعداد سفارش : 1 کیلومتر جزئیات بسته بندی : 2 کیلومتر / درام چوبی
زمان تحویل : 5-8 روز کاری شرایط پرداخت : L/C ، Western Union ، T/T
قابلیت ارائه : 4500 کیلومتر در ماه
محل منبع: گوانگژو چین نام تجاری: JQ/OEM/Customize
گواهی: ISO9001 ROHS CE-EMC FCC SDOC شماره مدل: gjfjv

اطلاعات تکمیلی
نام: کابل فیبر نوری داخلی غلاف بیرونی: PVC ، PE ، LSZH
نوع کابل: فیبر بافر محکم با نخ آرام محل منبع: گوانگژو چین
مواد استحکام: نخ زاویه ای رنگ: نارنجی ، زرد ، آبی
هسته: 2-48fiber نوع فیبر: چند حالت/ دوبلکس
بسته بندی: طبل چوبی برنامه: کابل کشی داخلی برای مراکز داده ، LAN و سایر برنامه های پر سرعت
مادی: PVC / LSZH / TPU / نایلون دمای نصب: -5°C تا +50°C
ضمانت: 3 سال طول: طول سفارشی
ماده ژاکت بیرونی: PVC یا LSZH شعاع خمیده: 10 برابر قطر کابل
زرهی: هیچ کدام در فضای باز یا سرپوشیده: کابل فیبر نوری داخلی
اتصال: MPO، MTP نام محصول: کابل فیبر نوری داخلی
مدل: کابل قطره 4 هسته ftth نوع فیبر: تک حالته
رنگ کابل: زرد/نارنجی هادی ها: ≥10
برجسته کردن:

LSZH flame retardant indoor fiber optic cable,multi-mode indoor fiber optic cable,ODM fiber optic cable with warranty

,

multi-mode indoor fiber optic cable

,

ODM fiber optic cable with warranty

توضیحات محصول

ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV



Multi-purpose distribution cable uses multiple 900μm flame-retardant tight-buffered fibers as the optical communication medium. Each fiber is reinforced with a layer of aramid yarn for added strength, then completed with a durable PVC or LSZH (Low Smoke, Zero Halogen, Flame-Retardant) jacket. The tight-buffered fiber is manufactured by sheathing the fiber with high-quality buffer material, available in diameters of Φ600μm or Φ900μm.



Carefully selected premium fibers, precision production equipment, and accurately designed tools ensure excellent transmission performance, low attenuation, and high reliability. This indoor cable is lightweight, flexible, and easy to install, making it ideal for building backbone networks, data centers, and FTTH (Fiber-to-the-Home) applications.





6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 0



Characteristics

  • Excellent mechanical and environmental performance

  • Flame-retardant properties comply with relevant industry standards

  • Jacketed design meets mechanical strength requirements

  • Soft, flexible, easy to install and splice, supporting high-capacity data transmission

  • Designed to meet diverse market and customer needs



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHz-km



2200MHz-km







@1300nm







21000MHz-km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.015NA



Cable Cut-off Wavelength λcc







≤1260nm





Cable diameter

  MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm



Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count		 Outside
Diameter		 Tight
buffer
Diameter

Weight



 Minimum
allowable Tensile
Strength(N)

    Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60

4

 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60



Application

  1. Suitable for pigtails and patch cords

  2. Ideal for equipment interconnection lines

  3. Can be used in indoor and outdoor cabling, especially as distribution cables

  4. Perfect for optical connections in communication rooms and optical distribution frames

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 1



Product Detail

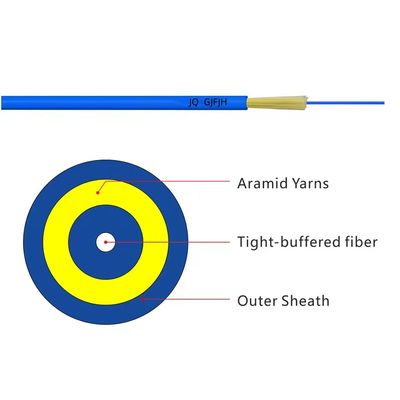

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 2

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 3

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 4





Packing

2km or customized length export wooden drum

6/12/24 Core GJFJV Multi-Mode Indoor Fiber Optic Cable LSZH Flame Retardant Jacket – ODM Service 5



FAQ

  1. Why choose us?

    • Professional manufacturer with low MOQ; free samples available

    • Stable high-quality products

    • Quick customer solutions

    • Competitive pricing to save costs and maximize benefits

  2. Do you accept OEM/ODM?
    Yes, we offer OEM and ODM services. Any ideas or custom requirements from you are welcome.

  3. Can you print our logo?
    Yes, we can print your logo on the products or packaging.

  4. What are the shipping methods?
    We support all shipping methods, including express delivery, sea, land, and air transport.

  5. What payment methods are accepted?
    We accept LC, TT, Western Union, Alipay, and other common payment methods.

  6. What is the delivery time?
    Usually 3–7 working days, depending on order quantity. We arrange shipment as soon as possible after payment.
