Water-proof Anti-rodent Steel Wire Armored Underground Installation Fiber Optic Cable GYFTY33 48F 96F

1 کیلومتر
MOQ
Water-proof Anti-rodent Steel Wire Armored Underground Installation Fiber Optic Cable GYFTY33 48F 96F
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
محل منبع: گوانگژو، چین
نام تجاری: Jiqian
شماره مدل: GYFTY33
تعداد فیبر: 4-288
غلاف: PE/LSZH، رنگ سیاه یا رنگی که دوست دارید
دمای مناسب: -40°C +70°C
نوع فیبر: حالت تک حالت G652D
گواهی: ISO9001 ROHS CE FCC
تولید کننده: بله
کابل فیبر نوری زره ​​پوش: بله، سیم فولادی زره ​​/ نوار فولادی
OEM: موجود است
برجسته کردن:

waterproof underground fiber optic cable,anti-rodent steel wire armored cable,GYFTY33 underground fiber optic cable

,

anti-rodent steel wire armored cable

,

GYFTY33 underground fiber optic cable

اطلاعات اولیه
محل منبع: چین
نام تجاری: Jiqian
گواهی: ISO9001 ROHS CE FCC
شماره مدل: GYFTY33-48F
پرداخت
جزئیات بسته بندی: طبل چوبی
زمان تحویل: معمولاً 7 روز، به مقدار سفارش بستگی دارد
شرایط پرداخت: T/T، 30٪ سپرده برای شروع تولید، 70٪ قابل پرداخت قبل از تحویل
توضیحات محصول

GYFTY33 Anti Rodent Optical Cable

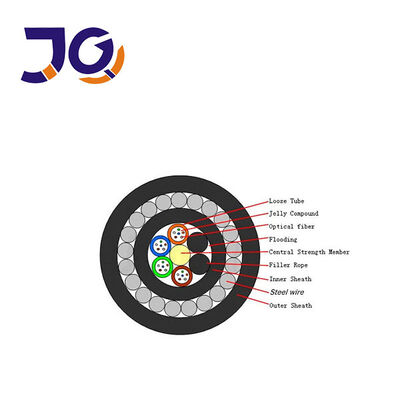

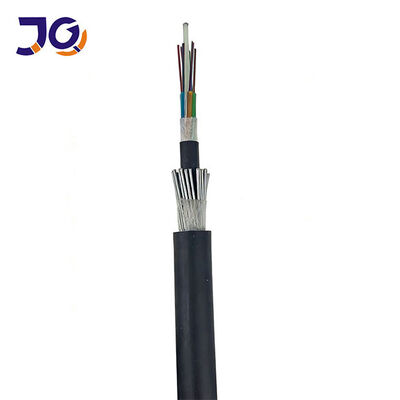

The GYFTY33 fiber optic cable is constructed with armored steel wire, providing superior mechanical performance in both tensile strength and crush resistance. Its steel wire armor and double-jacket design offer excellent protection against rodents and harsh environments. Double water-blocking yarns and tapes are applied around the fiber cores to ensure outstanding waterproof performance. This stranded loose-tube cable is available in both single-mode and multi-mode types, with fiber counts ranging from 4 to 288cores.


Water-proof Anti-rodent Steel Wire Armored Underground Installation Fiber Optic Cable GYFTY33 48F 96F 0
Water-proof Anti-rodent Steel Wire Armored Underground Installation Fiber Optic Cable GYFTY33 48F 96F 1




Application Scenarios

• Direct burial, underground pipelines, areas with high rodent infestation (farmland/mountainous/suburban areas);

• Outdoor communication backbones and access networks; suitable for humid/waterlogged environments;

• Not suitable for scenarios where high-voltage power lines are in the same trench without isolation (non-metallic reinforcement components lack electromagnetic shielding)


Temperature Range -40°C~+70°C
Bending Radius:(Dynamic/Static):20D/10D
Tension:40KN
Crush:4000N



Fiber Optic G652D:



Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100

Fiber Testing

Water-proof Anti-rodent Steel Wire Armored Underground Installation Fiber Optic Cable GYFTY33 48F 96F 2

Cable testing

Water-proof Anti-rodent Steel Wire Armored Underground Installation Fiber Optic Cable GYFTY33 48F 96F 3





Company profile:

Water-proof Anti-rodent Steel Wire Armored Underground Installation Fiber Optic Cable GYFTY33 48F 96F 4

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

Water-proof Anti-rodent Steel Wire Armored Underground Installation Fiber Optic Cable GYFTY33 48F 96F 5

FAQ



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
