GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use
GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use
اکنون تماس بگیرید

GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use

مقدار حداقل تعداد سفارش : 1 کیلومتر قیمت : 60-200USD/KM
جزئیات بسته بندی : طبل چوبی زمان تحویل : 3-5 روز ، به مقدار شما بستگی دارد
شرایط پرداخت : L/C ، D/A ، T/T ، Western Union ، MoneyGram قابلیت ارائه : 60000 کیلومتر در ماه
محل منبع: گوانگدونگ، چین نام تجاری: Jiqian/Customize
گواهی: CE/ISO9001/RoHS/FCC شماره مدل: ژنتیک

اطلاعات تکمیلی
شمارش فیبر: ۲- ۲۴ هسته عضو قدرت: رشته فولادی
OEM: بله زرهی: بله
کارخانه: بله ساخت و ساز: لوله شل رشته ای
نه هسته: 24 جفت غلاف: HDPE/LSZH/MDPE/PE
برجسته کردن:

armored single mode fiber optic cable,aerial duct fiber optic cable,outdoor armored fiber cable

,

aerial duct fiber optic cable

,

outdoor armored fiber cable

توضیحات محصول

Product Description

✅ Product Features / Characteristics

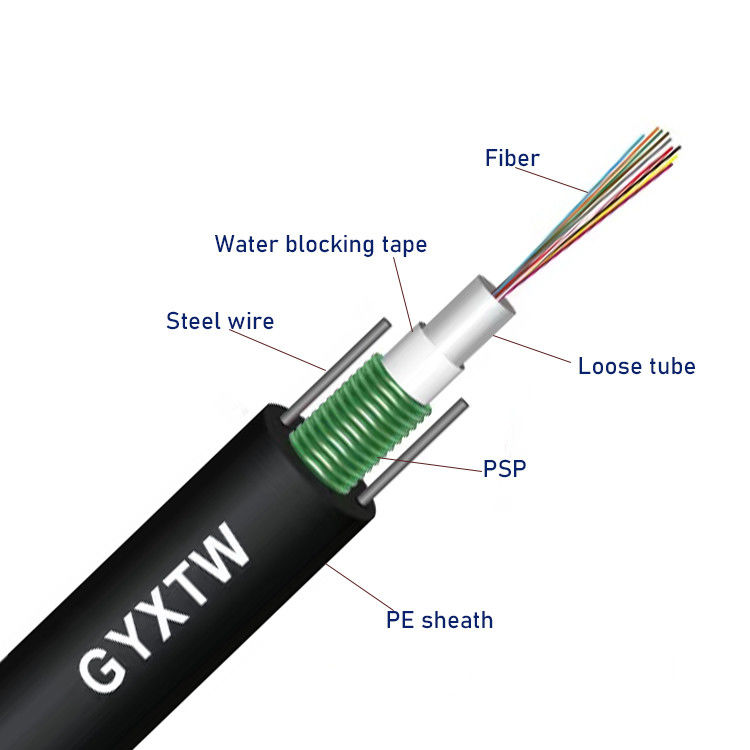

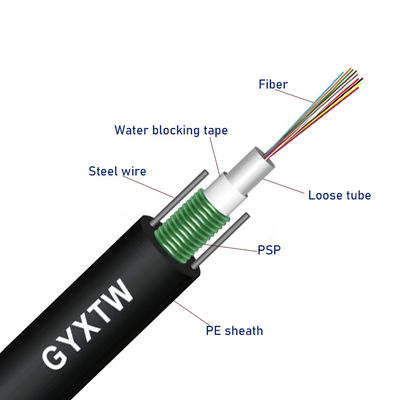

  • Steel Wire Strength Member:Parallel steel wire provides excellent tensile strength and extra protection to the optical fibers.

  • Tube and Tape Armored Structure:Central loose tube safeguards the fibers, while the tape-armored layer increases resistance to impact and crushing.

  • High Mechanical & Environmental Reliability:Engineered to deliver stable performance under harsh outdoor conditions.

  • Compact & Lightweight Design:Easy to handle, transport, and install, reducing labor and installation costs.

  • Quick and Simple Installation:Designed for fast deployment in aerial and duct installation projects.

✅ Operating Temperature

  • -40°C to +60°C
    Suitable for a wide range of climate conditions, ensuring long-term stability and reliability.

✅ Application

  • Designed for outdoor fiber optic distribution systems.

  • Ideal for aerial installation (self-supporting or with messenger wire) and pipeline/duct installation.

  • Applicable for long-distance communication networks, FTTx projects, backbone transmission, and LAN/WAN systems.

PRODUCT SPECIFICATIONS
Item
Parameters
Fiber Count
12
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black



GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use 0
GYXTW Armored Single Mode Fiber Optic Cable for Aerial and Duct Use 1
FAQ

Q1: Are you a factory or trading company?
A1: We are a factory.

Q2: What is your MOQ?
A2: The MOQ for fiber optic cables is 1 km.

Q3: Which fiber brands do you use?
A3: Corning, YOFC, FiberHome, and other trusted brands.

Q4: Do you accept small orders?
A4: Yes, small orders are welcome. We support new and trial projects.

Q5: What is the delivery time?
A5: 5–7 days after order confirmation, depending on quantity.

Q6: Can you provide customized products or logos?
A6: Yes, OEM and customized logos are available.

Q7: What are your payment terms?
A7: T/T, L/C, or Western Union. 30% deposit, 70% before shipment.
