96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

مقدار حداقل تعداد سفارش : 1 کیلومتر جزئیات بسته بندی : طبل چوبی
زمان تحویل : 5-8 روز کاری شرایط پرداخت : L/C ، T/T ، Western Union
قابلیت ارائه : 30 کیلومتر در روز
محل منبع: گوانگژو ، چین نام تجاری: JQ/OEM/Customize
گواهی: ISO9001 ROHS CE-EMC FCC SDOC شماره مدل: GCYFY/GCYFTY

اطلاعات تکمیلی

شمارش فیبر: 4-144Cores نوع فیبر: حالت تک حالت/چند حالت
ژاکت: PE/PVC/LSZH/HDPE/MDPE رنگ: مشکی یا نارنجی یا سفارشی
نام محصول: میکرو کابل هواکش شماره مدل: GCYFY/GCYFTY
طول: 2 کیلومتر یا طول سفارشی نصب: هوایی یا مجرای
تعداد هادی ها: 10 پوند در فضای باز: کابل فیبر نوری در فضای باز
عضو قدرت اصلی: FRP یا سیم فولادی ماده مسدود کننده آب: نوار مسدود کننده آب یا ترکیب پر کننده
زره: زره نوار فولادی راه راه اندازه کابل: 8mm ~ 16mm
هسته: طبق درخواست خریدار ساخت کابل: زره نوار فولادی لوله چند گشاد
RTS: 45-80 کیلوگرم دمای عملیاتی: -40 درجه سانتیگراد تا +70 درجه سانتیگراد
OEM: قابل قبول ضمانت: 25 سال
لوله شل: PBT مدل: کابل فیبر نوری زره ​​پوش
ماده ژاکت: پستان فیبر: تک آهنگ/چند حالته
هسته: 12-144Cores قطر پیام رسان: 5.0 میلی متر
رنگ ژاکت بیرون: سیاه غلاف: HDPE
زمان بلند کردن: بیش از 20 سال ماده لوله سست: PBT
ساختار: لوله شل مرکزی مواد غلاف داخلی: PE/HDPE
نمونه: رایگان شماره اصلی: 6cores/8cores/12cores
عضو قدرت: سیم فلزی نوع کابل: لوله شل
برجسته کردن:

96 core microduct fiber cable,air blown outdoor fiber optic,loose tube high speed cable

,

air blown outdoor fiber optic

,

loose tube high speed cable

توضیحات محصول

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable

Product Description

The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.

Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.

Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.





1. Model: GCYFY-96B1.3

2. Cable Cross-section

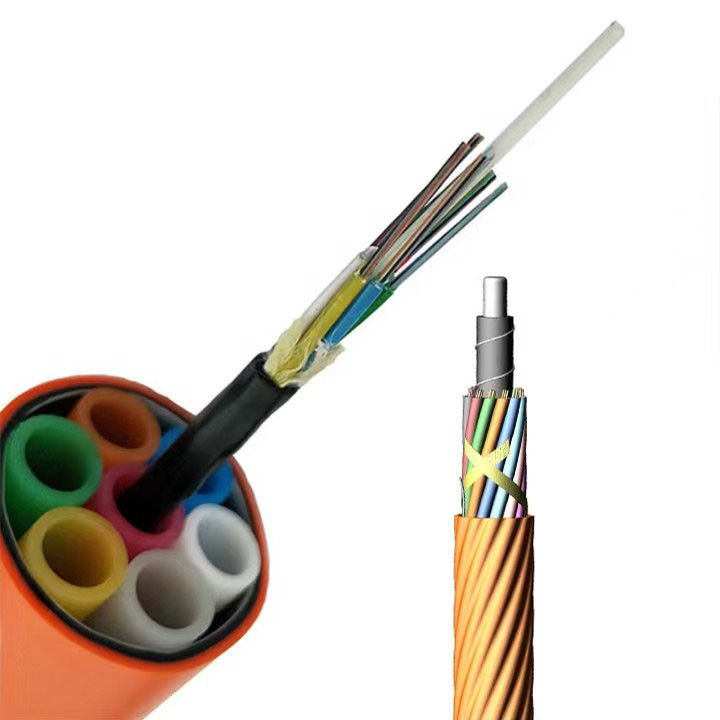

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 0







Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





Fiber & Tube Color

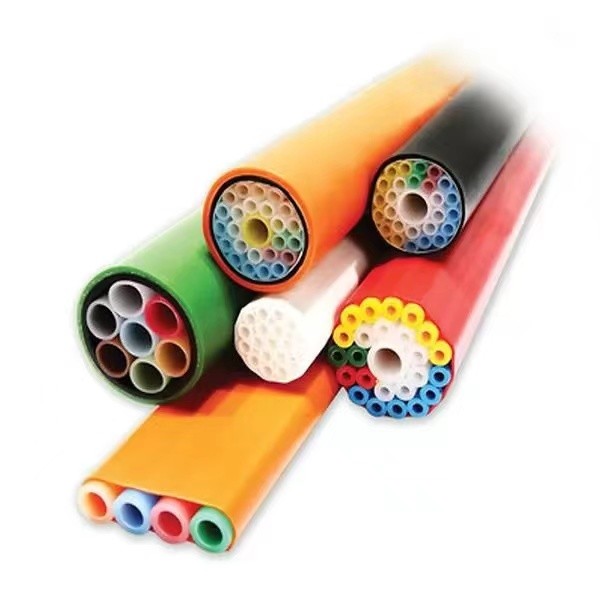

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 1

Features
GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.

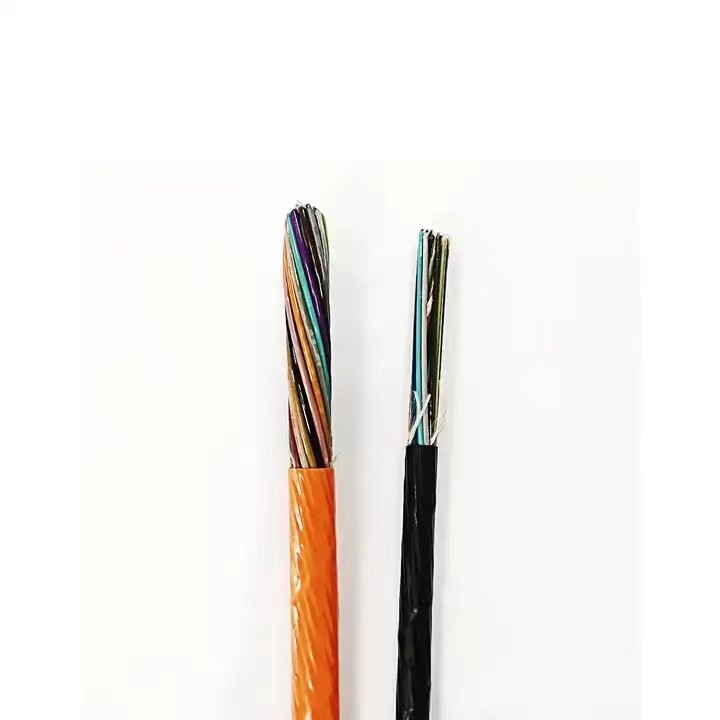

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 2







Cable Parameters





Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38





Environmental Characteristics

Working temperature -35oC ~ +70oC
Storage and transportation temperature -35oC~ +70oC
Installation temperature -15oC~ +60oC





Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.



Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 3



FAQ

Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.



Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.



Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.



Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.



Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.



Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.



Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
