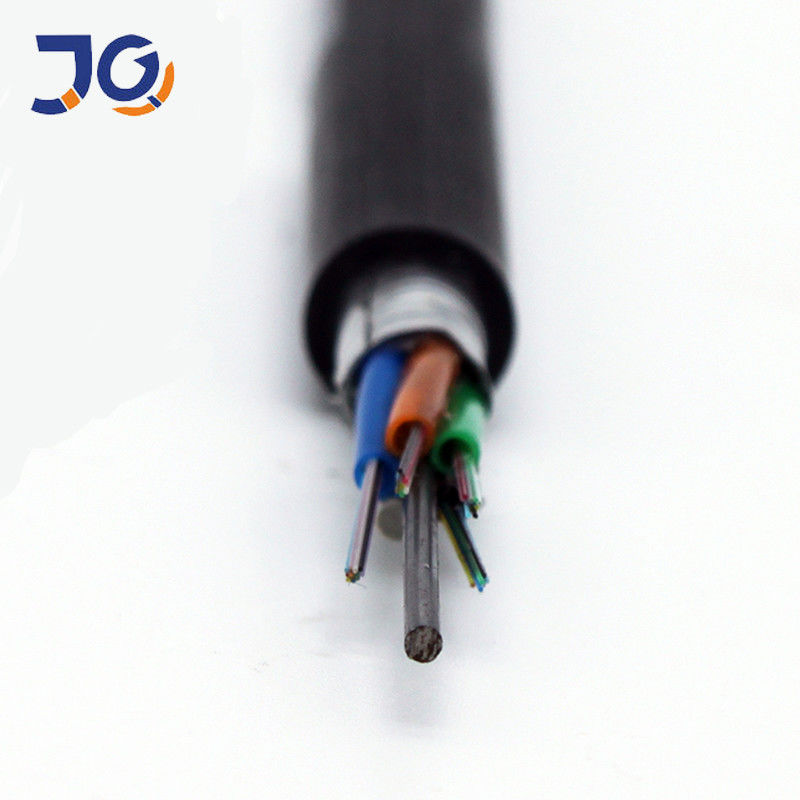

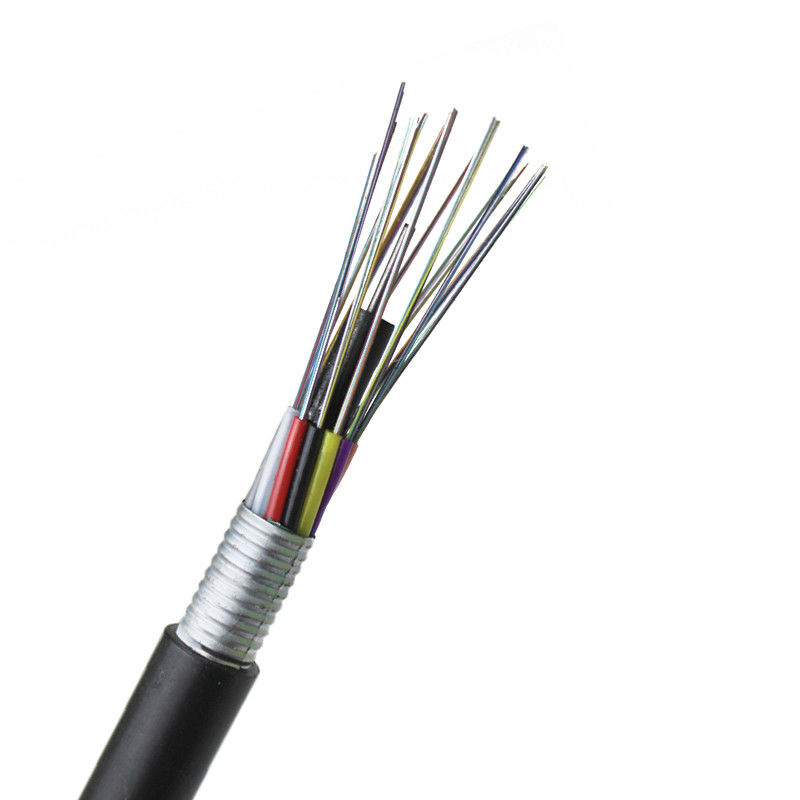

GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation
GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation
GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation
اکنون تماس بگیرید

GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong，China نام تجاری: JQ/OEM/Customize
گواهی: CE/ISO9001/RoHS/FCC Model Number: GYTA 12core/24core/48core

اطلاعات تکمیلی
Type: Outdoor Fiber Optic Cable Place of Origin: Guangdong, China
Fiber type: G652D Single mode or as your request Fiber count: 2-144 Cores
Length: Customized Color: black
Tube: Multi-Loose Tube Central strength member: Steel wire
Armoured: Aluminium tape Outer Sheath: PE or as your request
Package: Wooden Drum/Customized Application: Aerial,Overhead
Oem: Available Operating temperature: -40°C~+70°C
Outer Jacket Material: Shockproof material Cable Strength Member: Steel Wire Or FRP
Installation Methods: Duct/ Direct Burial Sheath: PVC,LSZH
Installation: Aerial Instructure: PSP enhancing moisture-proof
Key Words: Fiber Optic Cable Price Per Meter Samples: free
Bend Radius: 10x Cable Diameter Armor: Corrugated steel tape
Connection Structure: Stranded loose tube Fibe Type: Single mode and Multi mode
Cable Design: Central loose tube Conductor Type: Optical Fiber
برجسته کردن:

armoured fiber optic cable for aerial,GYTA 144 core fiber cable,outdoor armored fiber optic cable

,

GYTA 144 core fiber cable

,

outdoor armored fiber optic cable

توضیحات محصول

GYTA Armoured Optical Fiber Cable – 2-144 Core, Stranded Loose Tube, Aerial & Duct Use, Aluminum Strip for Enhanced Durability

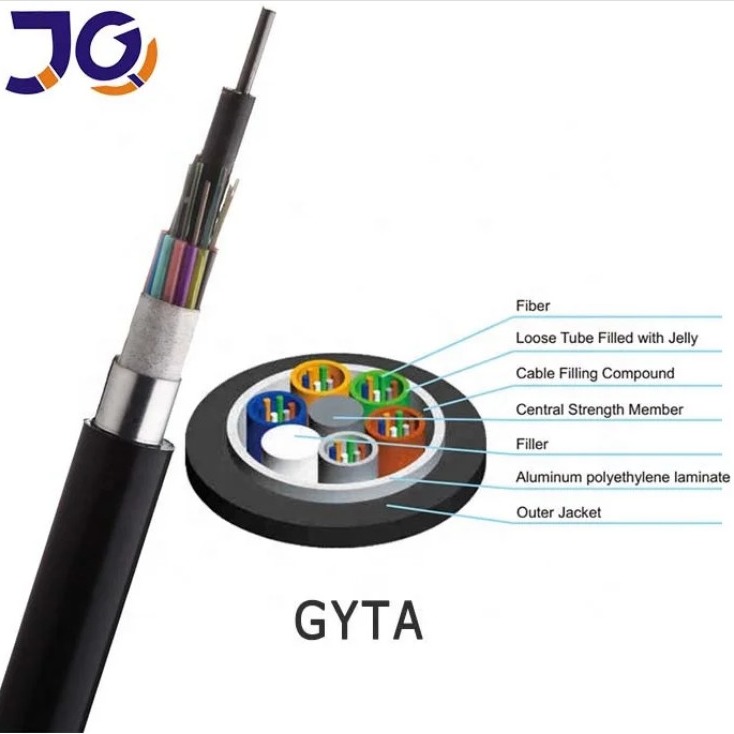

Loose tubes are stranded around a central strength member to form the cable core. The core is bound by an aluminum polyethylene laminate, bonded to a PE inner jacket with a moisture barrier. A corrugated steel tape, laminated with polyethylene, is applied, followed by a medium-density PE outer jacket. GYTA cables are suitable for aerial and duct installations, but not for direct burial. The aluminum strip (A) provides better rust and moisture resistance than steel, ensuring a longer service life in duct applications.



GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation 0

  • High tensile strength with excellent resistance to mechanical stress, crush, temperature, and transmission.

  • Phosphatized steel wire as the central strength member, with PE buffer extruded when needed.

  • Loose tubes, cable core, and interstices filled with moisture-proof gel to prevent water ingress.

  • Aluminum tape laminated with polyethylene, bonded to the PE inner sheath for radial moisture protection.

Specification:

item value
Model Number GYTA
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Loose tube material PBT
Central strength member steel wire
Armoured Al tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Aluminum/Steel Tape armor
Color Black or as your need
Package Fumigation free wooden drum
Installation aerial, in duct
Certification CE/ROHS/ISO9001 /ANATEL
OEM Available


Structure and Technical Specifications:

Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation 1

WHY CHOOSE US:

GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation 2



Certification:

GYTA 2-144 Core Armoured Fiber Optic Cable for Aerial Duct Installation 3

FAQ

  1. Who are we?
    Based in Guangdong, China, we’ve been operating since 2017. We sell to Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). Our team consists of 11-50 people.

  2. How do we guarantee quality?

  • Pre-production sample approval

  • Final inspection before shipment

  1. What products do we offer?

  • Fiber Optic Cable

  • FTTH Drop Cable

  • Communication Cables

  • Outdoor/Indoor Fiber Cable

  1. What services do we provide?

  • Delivery Terms: FOB, EXW

  • Payment Currency: USD, CNY

  • Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Languages Spoken: English, Chinese

  1. MOQ: What is the minimum quantity?

  • MOQ: 1KM

  1. Can I get a sample?

  • Yes, we provide free samples; you just need to cover the express freight.

  1. Do you accept OEM or ODM?

  • Yes, we are a manufacturer with our own Engineering Department. Just share your requirements with us.

  1. What is your delivery time?

  • Delivery is typically within 3-7 days after order confirmation, depending on quantity.
