GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial
GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial
اکنون تماس بگیرید

GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China نام تجاری: Jiqian/Customize
گواهی: CE/ISO9001/RoHS/FCC Model Number: GYTS-48B1

اطلاعات تکمیلی
Fiber Type: G652D/G657A1/G657A2 Fiber count: 2-288 cores
Jacket: PE,MDPE,LSZH,PVC Color: Black
Length: 2km , 5Km, or customized length Warranty: 10 Years
Application: Duct/ Direct Burial Wave Length: 1310/1550
Tube Type: Loose tube Lift Time: More Than 20 years
Fiber Brand: yofc/corning Waterproof: Yes
Jacket Diameter: 9.8-16.1 Allowed Lateral Pressure: >1000(N/100mm)
Strength Member: Two steel wire Cable Length: 1000m
Number Of Conductors: 2,4,8,24,48 Diameter Of Tube: 2.2-2.6mm
Span: 100/200/300/400/500m Armor Type: Steel Tape
برجسته کردن:

GYTS armored fiber optic cable,underground burial fiber optic cable,2-288 core fiber optic cable

,

underground burial fiber optic cable

,

2-288 core fiber optic cable

توضیحات محصول

The 2, 4, 6, 8, 12, 24, 32, 48 Cores Armoured Optical Fiber Cable GYTS is designed for high-performance underground fiber optic installations. Equipped with a robust armoured layer, this cable ensures superior protection against mechanical damage and environmental factors. Available in multiple core configurations, it provides excellent flexibility and reliable data transmission over long distances. Ideal for telecom networks, data centers, and other critical communication infrastructures.

GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial 0

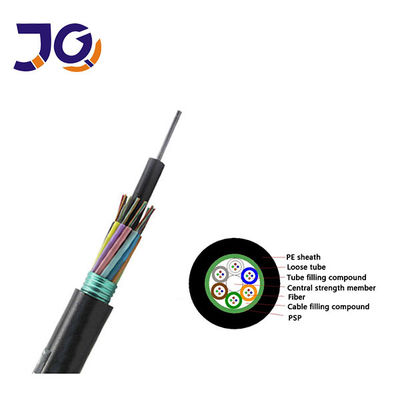

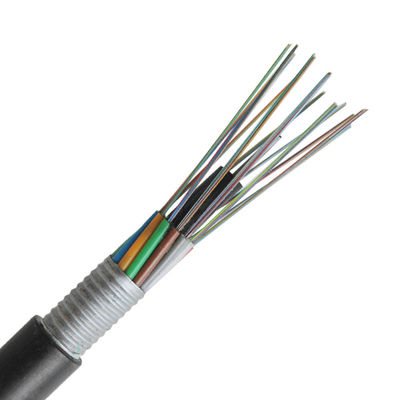

Structure feature

  • Loose tubes (or fillers) are stranded around a central metal strength member.

  • The core is wrapped with corrugated steel tape and protected by a PE outer jacket.

  • The tubes, made from temperature-resistant materials, house double-coated single-mode or multi-mode fibers.

GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial 1
Product feature



  1. Fibre type selection

  2. Fibre colour coding

  3. Excellent water resistance

  4. High crush resistance

  5. Sheath material options

  6. Low attenuation and dispersion

  7. Flexible and bendable


GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial 2
Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS
98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS
122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS
146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D



GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial 3





Fiber Tube Color:
GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial 4

Packaging Details

  • Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.

  • Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial 5
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial 6
Exhibition Picture
GYTS Armored Fiber Optic Cable 2-288 Cores for Underground Burial 7

Frequently Asked Questions (FAQ)

1. What is a fiber optic cable?

Fiber optic cables transmit data using light signals, offering faster speeds and higher bandwidth than traditional copper cables.

2. What types of cables do you offer?

We offer armoured, drop, and loose tube fiber optic cables, suitable for various applications like underground and FTTH installations.

3. What is the core count available?

We offer cables with 2, 4, 6, 8, 12, 24, 32, and 48 cores, with custom core counts on request.

4. What’s the difference between single-mode and multi-mode fiber?

  • Single-mode: Best for long-distance, high-speed communication.

  • Multi-mode: Ideal for shorter distances and higher data transmission rates.

5. What is the packaging for fiber optic cables?

Cables are packed in fumigated wooden drums, with an outer layer of polyethylene sheets and strong wooden battens for protection.

6. How do I choose the right fiber optic cable?

Choose based on core count, type of fiber (single-mode or multi-mode), and the installation environment (indoor, outdoor, underground). We can assist with selecting the best option.

7. What is the lead time for orders?

Orders typically ship within 7-10 business days, with longer lead times for custom orders.

8. Do you provide installation services?

We do not provide installation directly but can recommend trusted installers.

9. How can I request a quote?

You can request a quote by contacting us at [Insert Email], providing your specific needs (core count, cable type, quantity, etc.).
