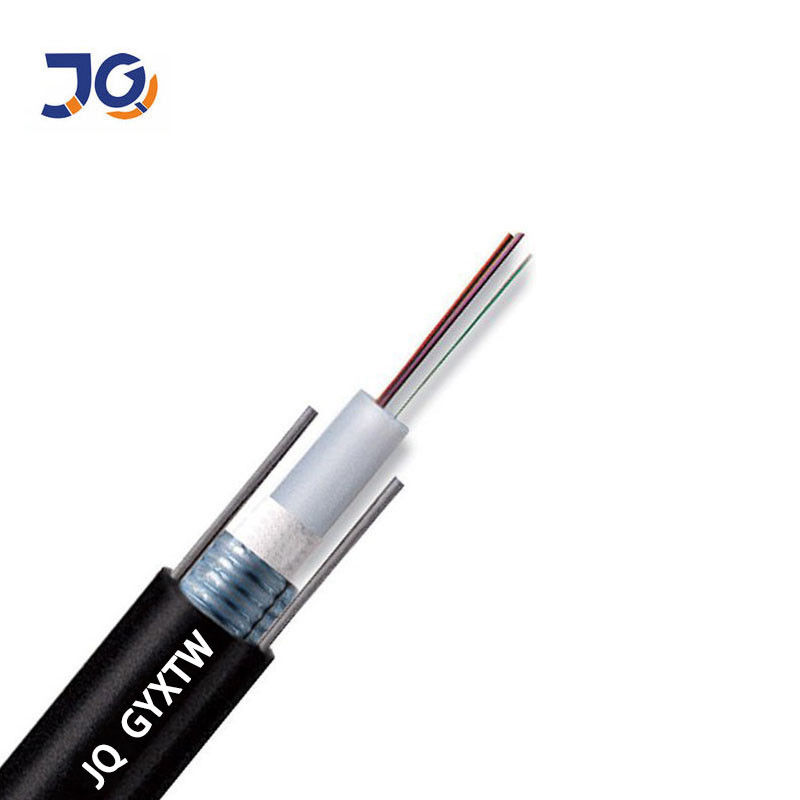

GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use
GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use
GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use
اکنون تماس بگیرید

GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use

Minimum Order Quantity : 1KM قیمت : 60-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong China نام تجاری: Jiqian/Customize
گواهی: CE/ISO9001/RoHS/FCC Model Number: GYXTW

اطلاعات تکمیلی
Fiber count: 2-24Core Strength member: steel strand
Warranty: 25 years MOQ: 1KM
OEM: Yes Armored: Yes
Factory: Yes Construction: Stranded Loose Tube
Operating Temperature: -40°C to +70°C Dynamic: 20D/mm
Jacket Material: PE Outer Sheath Cable Core: simplex
Steel Wire Size: 0.8mm Fiber Mode: Single Mode or Multi Mode
Length Per Roll: 2KM OR CUSTOMIZED Oute Sheath: Black PE/LSZH
Business Type: Manufacturer Cable Weight: 80kg/km
Fiber: Fujikura G652D Manufacturer: Yes
Model: PDLC-PDLC Operation Temp: -20℃~ +70℃
Samples: Free
برجسته کردن:

armored fiber optic cable outdoor,single-mode fiber optic cable 24-core,outdoor armored cable with warranty

,

single-mode fiber optic cable 24-core

,

outdoor armored cable with warranty

توضیحات محصول

Product Description

GYXTW Outdoor Duct & Aerial Fiber Optic Cable (Single-Mode/Multi-Mode G652D)

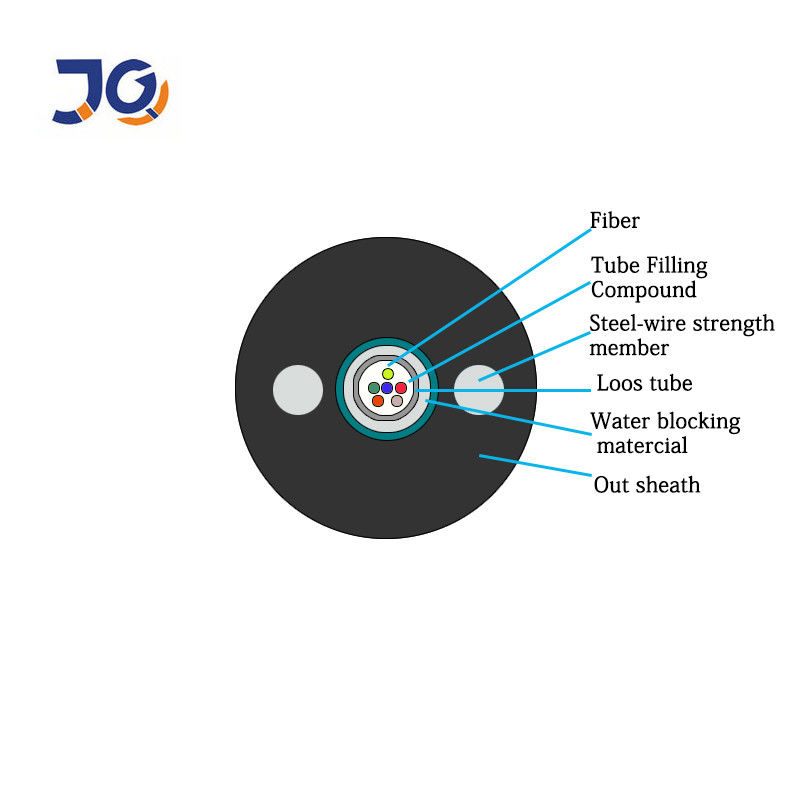

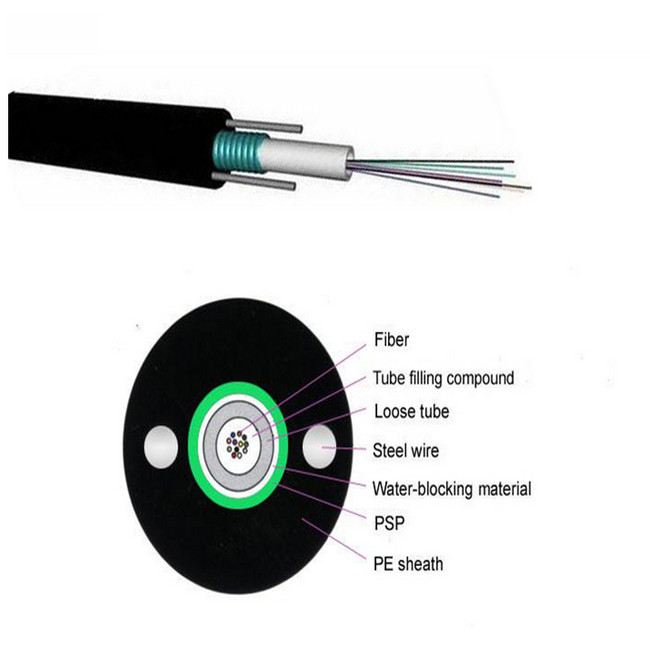

OEM outdoor fiber optic cables are available in single-mode and multi-mode G652D variants, with core counts ranging from 2 to 24. Known as central bundle tube or light-armored cables, GYXTW features 2 to 12 fiber cores color-coded within a central loose tube. The designation breaks down as follows:

  • GY — Outdoor cable

  • X — Central bundle tube design

  • T — Filled structure

  • W — Polyethylene outer sheath with steel wire reinforcement

These cables are highly adaptable for aerial, buried, or duct installations, making GYXTW one of the most widely used types in the optical cable industry.

GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use 0

Characteristics

  • Parallel steel-wire strength member provides extra protection, complemented by a filler tube that safeguards both fibers and steel components.

  • Tape-armored construction enhances durability and resistance.

  • Excellent mechanical strength and environmental resilience.

  • Compact, lightweight design for ease of handling.

  • Simple installation process and user-friendly operation.



Operating temperature range
* -40°C~+60°C

Application

  1. Designed for outdoor distribution.

  2. Ideal for aerial and pipeline installation methods.

  3. Suitable for long-distance and local area network communications.

GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use 1
PRODUCT SPECIFICATIONS
Item
Parameters
Fiber Count
12
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black
Related Products
GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use 2
GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use 3
Company Profile
Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a high-tech enterprise specializing in the development, production, and sales of communication products, with full import and export rights. With over 8 years of industry experience, we are a certified ISO 9001:2015 manufacturer focusing on fiber optic cables and patch cords. We provide OEM services and custom cable design tailored to customer requirements. Our products, including optical fiber cables and related components, are widely used in telecommunications and exported globally to markets such as Egypt, Pakistan, Maldives, India, Brazil, and Chile.
GYXTW Armored Fiber Optic Cable 2-24Core Single-Mode for Outdoor Use 4
FAQ

  1. Q: Are you a manufacturer or a trading company?
    A: We are a direct manufacturer.

    Q: What is the minimum order quantity (MOQ)?
    A: The MOQ for fiber optic cables is 1 km.

    Q: Which fiber brands do you use?
    A: We source fibers from Corning, YOFC, Fiberhome, and others.

    Q: Do you accept small orders?
    A: Yes, small orders are welcome. We support new projects as we know business often begins with small quantities.

    Q: What is the delivery time?
    A: Typically, delivery takes 5–7 days after order confirmation, depending on quantity.

    Q: Can you customize products and logos?
    A: Yes, we provide OEM services for custom products and branding.

    Q: What are your payment terms?
    A: We accept T/T, L/C, and Western Union. Usually, 30% deposit is paid upfront, with 70% balance before shipment.
