12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span
12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span
12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span
اکنون تماس بگیرید

12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China نام تجاری: jiqian/haiso/Customize
گواهی: ISO9001/CE/RoHS Model Number: ASU

اطلاعات تکمیلی
Fiber Count: 4-12 Warranty: 25 years
Fiber Type: G652D,G652B,G657A Application: Outdoor communication and transmission
Fiber Brand: YOFC/Fiberhome/Fujikura/Corning Packing: 2km/Wooden Durm
Strength Member: FRP OEM: Yes
Jacket: PE,MDPE, HDPE Feature: Uni-Tube All Dielectric Drop Cable
Color: Black or Customized Fiber Core: 2-144
Uv Resistance: Yes Cable Type: Loose Tube
Model Name: ASU MINI ADSS Structure Section: Stranded
Operating Temperature: -40°C to +70°C Construction: Central Loose Tube
Business Type: Manufacturer Quality Control: 100% Testing Before Shipment
Number Of Conductors: 2,4,8,12,24,48,96 Type Of Votage: Medium Voltage
برجسته کردن:

12 core outdoor fiber optic cable,FRP strength member fiber cable,120M span fiber optic cable

,

FRP strength member fiber cable

,

120M span fiber optic cable

توضیحات محصول

12 Core Self Supporting 120M Span 2 Frp Strengthen Member Aerial ASU Cable De Fibra Optica

12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 0


Product Description

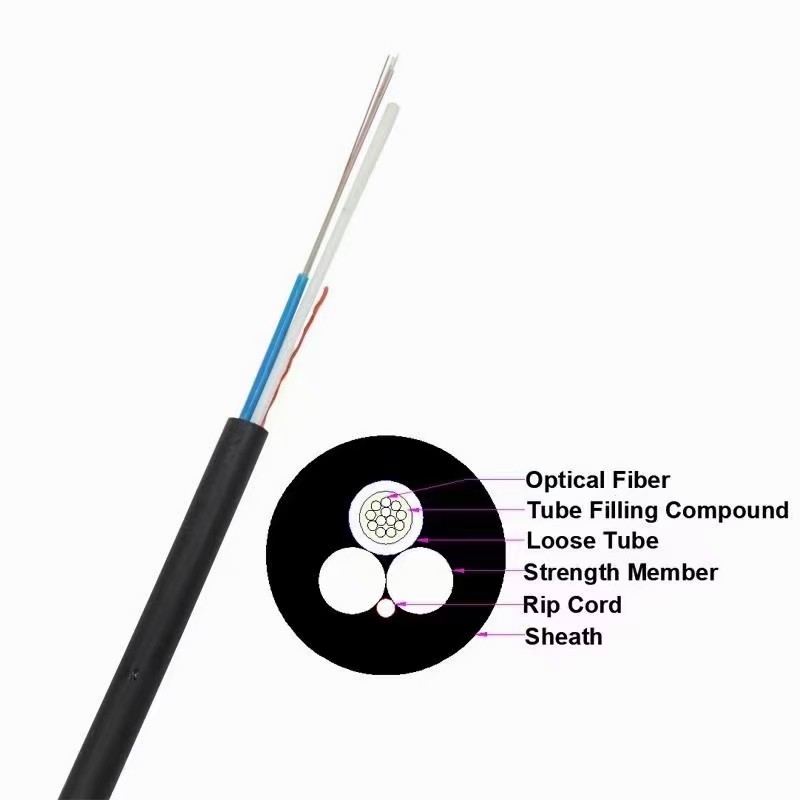

This non-armored uni-tube optical cable features fibers housed in a loose tube filled with water-blocking jelly for moisture resistance. A black polyethylene outer jacket ensures durability, while two embedded FRP or metallic strength members provide the required tensile strength. A red ripcord allows for easy cable access.
12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 1
ASU 100
ASU100 optical cables are designed for self-supporting spans up to 100 meters, making them ideal for rural installations where pole distances typically range from 90 to 100 meters.
12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 2
ASU 120
ASU120 optical cables support spans up to 120 meters, making them suitable for cable deployment in extended-distance environments.

12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 3





Applicable fields:

12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 4







Specification



No. of cable
1-12
Fiber Model
G.652D
Strength Member
Material
FRP

Diameter(±0.05)mm
1.8
Loose Tube
Material
PBT

Diameter(±0.06)mm
1.8

Thickness(±0.03)mm
0.35

The Max.Core NO./Tube
12
Outer Sheath
Material
PE
Cable Diameter(±0.2)mm
6.7
Cable Weight(±5)kg/km
38
Min. bending radius
Without Tension
10.0×Cable-φ

Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60

Transport&Storage
-40~+70

Operation
-40~+70
We still have self-supporting cables for longer distances on the market.
Such as the ASU500, but the 80, 100 and 120 are the most commonly used due to their applicability.







12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 5



There are twelve fiber color code.They are A grade fiber.

12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 6

All products will have been strictly quality checked in house before packing.

12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 7

All products will be well packed before shipment.



12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 8




We are fiber cable manufacturer. We have a factory.

12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 9

12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 10



We have rich experience in foreign trade.

Give us a chance to server you, saving your time and money.

Contact me!!! Whatsapp & Wechat: +8618122383351



12 Core ASU Fiber Optic Cable FRP Strength Member 120M Span 11

FAQ:

  1. Are you a manufacturer or trading company?
    Yes, we are a direct factory located in Guangzhou, China.

  2. Do you offer samples? Are they free?
    Yes, free samples are available—you only need to cover the shipping cost.

  3. Do you accept small orders?
    Absolutely. We welcome small or trial orders, especially for new projects, as we believe every big business starts small.

  4. What is your warranty for fiber optic cables?
    We offer a 25-year warranty on all fiber optic cables.

  5. What certifications do you have?
    We are certified with ISO9001:2000.

  6. How fast is your delivery?
    Typically, orders are shipped within 3–5 working days.

  7. Which fiber brands do you use?
    We use top-tier brands such as Corning, YOFC, and Fiberhome.

  8. What payment methods do you accept?
    T/T, L/C, Western Union, and PayPal are all accepted.

  9. Can you provide customized products with our logo?
    Yes, we offer OEM & ODM services based on your specific requirements.
